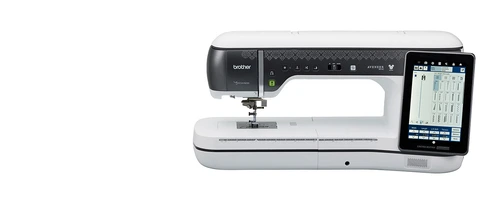

EV1LE Aveneer Limited Edition EV1-LE Sewing, Quilting & Embroideryt
|
|
|
|
|
|

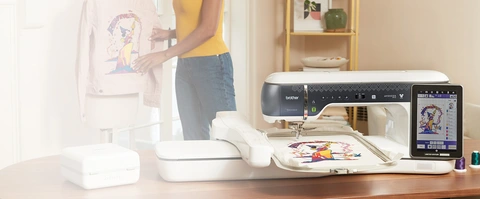

The Aveneer Limited Edition (EV1-LE) upgrades the experience from the Aveneer EV1 adding specialty cosmetic featuring a lacey Mickey Mouse geometric pattern. Adding 20 additional Disney Designs exclusive to the EV1-LE and offering 10 additional embroidery design downloads from the Artspira app, only 1000 of the Aveneer Limited Edition will be produced, each having a unique number. Main FeaturesAbout the Product

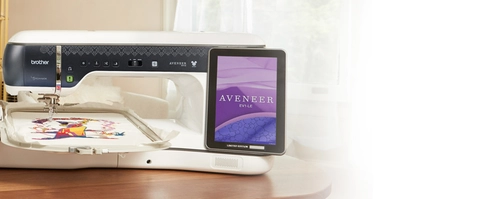

Exclusive Limited Edition
Only 1,000 Aveneer numbered Limited Edition (EV1-LE) models will be produced. Flaunting a dark gray metallic exterior adorned by a lacy Mickey Mouse geometric pattern, it includes 20 additional Disney designs exclusive to EV1-LE. Also includes access to 10 additional bonus embroidery design downloads from Artspira.

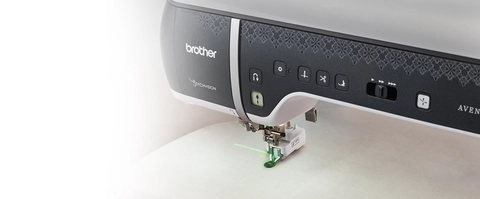

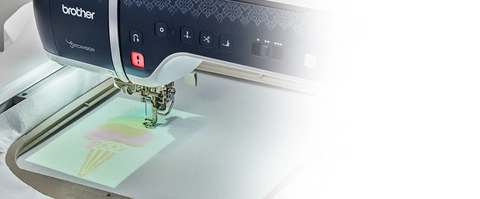

8” x 5” (127 x 203 mm) Projector Area with StitchVision Technology
The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

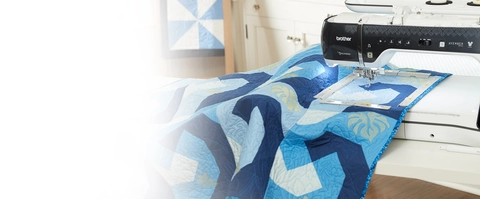

Large Workspace
The Aveener EV1-LE is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

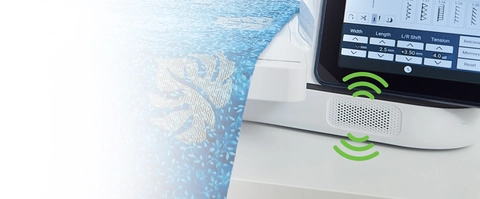

Voice Guidance
Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

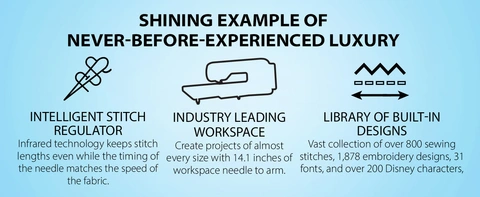

ISR Intelligent Stitch Regulator
Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

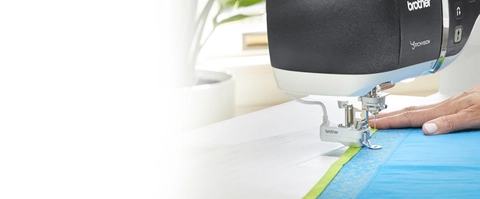

ISR Edge Detection System
Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.
Picture Play Embroidery Function
Elevating personalization to soaring new levels, the Aveneer EV1-LE uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaninful feature that grants users the ability to effectively "paint with thread".

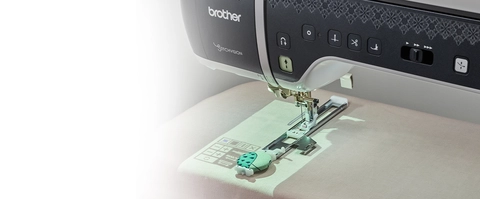

Buttonhole Preview
A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.
A Library of Built-in Designs
Browsing a vast collection of over 800 sewing stitches, 1,878 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable. Enjoy 20 additional Disney designs exclusive to EV1-LE.
10.1" Capacitive Touch Screen
The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.
Dual-Purpose Stylus
For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

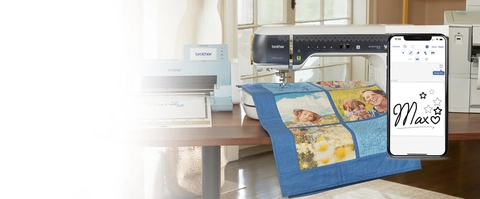

Artspira Mobile App2
The Artspira Mobile App unlocks an additional 10 bonus designs, including three in-the-hoop projects, exclusive to Aveneer owners. Artspira also provides the ability to create unique designs by taking your drawings to stitches on a mobile device or tablet. The Drawing Tool feature includes single and zigzag stitch options, shapes and templates. With Artspira’s augmented reality feature, preview how embroidery designs will appear on finished garments.

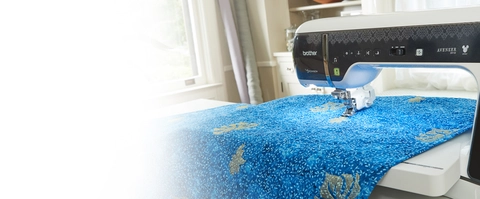

Edge-to-Edge Quilting
With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1-LE even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!
Quiltbroidery
The EV1-LE's Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.
Two-Color Quilting Sash Designs
Expand your creative output by selecting from five two-color quilting sash designs - perfect for eye-catching, colorful borders.
My Design Center Decorative Fill Options (Available January 2025)
Enjoy more designs with the Brother-exclusive My Design Center with 48 decorative fill options inspired by geometric shapes, basket weaves, leaves and bubbles.
Large Connect Designs (Available December 2024)
When you want to ‘go big’ on your next embroidery project, the five built-in large connect embroidery designs are a great starting point. Select from ornate flowers, birds, and other elaborate designs that range from 721mm x 383mm (28" x 15") and when combined, allow you to create a large ensemble.
Ornate Long Stitch Technique
Try adding a unique geometric element to almost any project with any of the 8 new long-stitch patterns inspired by string art (now 10 in total). Bringing visual interest, these patterns are used to create layered long stitches for dramatic and eye-catching embellishment. Want to modify a pattern? Look to the savvy No Sew embroidery feature to help remove specific design elements before starting any project.

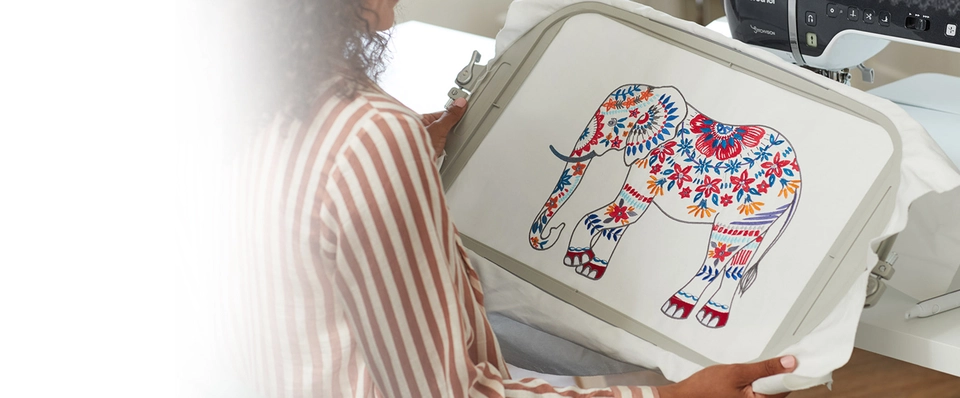

Large 11 5/8" x 18 1/4" Embroidery Field
The largest and most advanced embroidery frame Brother has ever offerred. Measuring 11 5/8" x 18 1/4" with an enhanced, easier to release lever. We've even included a support table to help support your larger hoops. which makes it easier than ever to create sizable embroidery projects.
Included Embroidery Hoops:
• 5" x 7"
• 4" x 4"
• 11 5/8" x 18 1/4"
• 10 5/8" x 10 5/8"
Optional 10" x 10" Magnetic Frame
Hoop thick materials with ease. Avoid fabric shifting and the need to rehoop the fabric when connecting designs or embroidering large areas. Just slide the fabric on the frame for the next area to be embroidered. (Additional purchase required)
Specifications
| Accessory Storage | Yes |
|---|---|
| Adjustable Presser Foot Pressure | Yes |
| Adjustable Screen Brightness | Yes |
| Automatic Thread Cutter | Yes |
| Branded Series | Disney |
| Built-in Languages | Yes |
| Built-In Memory | Yes |
| Display Type | LCD |
| Feed Dog Points | 7 |
| LCD Display Size (W" x H") | 10.1" |
| Lighting Type | LED |
| Needle Position Key (Up/Down) | Yes |
| Needle Threading System | Automatic |
| Number of USB Ports | 2 |
| Presser Foot Leveling | Yes |
| Quick Set Bobbin | Yes |
| Realistic Preview | Yes |
| Screensaver | Yes |
| Stitch Selector Type | Touch Panel |
| Thread Sensor | Bobbin Sensor, Upper Thread Sensor |
| Thread Sensor On/Off | Yes |
| UL/CSA Listed | Yes |
| Wide Table Included | No |
| Wireless Enabled | Yes |
| Workspace Area | 14.1" x 5" |
| Carton Dimensions (W" x D" x H") | 37.598 " x 27.717 " x 33.661 " |
|---|---|
| Carton Weight (lbs) | 100.090 |
| Unit Dimensions (W" x D" x H") | 29.567” x 13.268” x 13.78” |
| Unit Weight (lbs) | 43.431 |
| Adjustable Design Icon Size Setting | Yes |
|---|---|
| Adjustable Embroidery Speed Settings | Yes |
| Appliqué Creator Function | Yes |
| Built-In Alphabet Fonts | 31 |
| Built-In Designs | 2115 |
| Built-in Embroidery Designs featuring Disney/Pixar Characters | 237 |
| Color Shuffling Function | Yes |
| Computer Connectivity | Yes |
| Curved Text on Screen Editing | Yes |
| Drag and Drop Editing | Yes |
| Embroidery Position Marker | Yes |
| Frame Designs - Shapes | 10 |
| Frame Designs - Stitches | 14 |
| Included Embroidery Hoops | 10 5/8" x 10 5/8", 5" x 7", 4" x 4" |
| InnovEye Technology | Yes |
| Maximum Embroidery Area | 11 5/8” x 18 1/4” |
| Maximum Embroidery Speed (spm) | 1050 |
| Maximum Zoom (%) | 1600 |
| Onscreen Automatic Density Adjustment | Yes |
| On-Screen Editing | Yes |
| Pattern Rotating Increments | 0.1 Degree, 10 Degrees, 90 Degrees, 1 Degree |
| Print and Stitch Technology | Yes |
| Programmable Monochrome Embroidery | Yes |
| Resume Function | Yes |
| Sewing Decorative Stitches with Embroidery Arm Attached | Yes |
| Space Reduction among Embroidery Alphabets | Yes |
| Speed Adjustment | Yes |
| Thread Wiper | Yes |
| Trial Position/Layout Function | Yes |
| Built-in Quilting Stitches | Yes |
|---|---|
| Built-in Sewing Lettering Fonts | 4 |
| Drop-Feed | Automatic |
| Free Motion Quilting Foot | Yes |
| Included Quilting Feet | Yes |
| ISR Intelligent Stitch Regulator | Yes |
| Automatic Height Adjustment (AHA) | Yes |
|---|---|
| Available Stitch Types | Chain Stitch, Lock Stitch, Straight Stitch, Zigzag Stitch, Stretch Stitch, Overlock Stitch, Cover Stitch, Running Stitch, Back Stitch, Satin Stitch, Outline Stitch, Tacking Stitch |
| Back to Beginning Key | Yes |
| Built-In Lettering Fonts | 4 |
| Built-In Stitch Selections (Stitches) | 852 |
| Button Hole Styles | 25 |
| Independent Bobbin Winding Motor | Yes |
| Knee Lifter | Yes |
| Maximum Sewing Speed (Stitches Per Minute) | 1050 |
| Multi-Directional Sewing | Yes |
| My Custom Stitch Feature | Yes |
| Pivot Function | Yes |
| Reinforcement/reverse Stitches | Yes |
| Sideways Sewing | Yes |
| Speed Control | Yes |
| Stitch Length (mm) | 5 |
| Stitch Width (mm) | 7 |
| "In-Box" Consumables/Yield‡ | Zigzag foot “J” (on machine), Advanced monogramming foot “N+”, Overcasting foot “G”, Zipper foot “I”, Buttonhole foot “A+”, Buttonhole foot stabilizer, Blind stitch foot “R”, Button fitting foot “M”, 1/4" Piecing foot with guide, Straight stitch foot, Free motion quilting foot “C”, Free motion open toe quilting foot “O”, Free motion echo quilting foot “E” (Attach the included adapter to use this product), Adapter, Screw (small), Stitch regulator, Stitch regulator quilting foot, Stitch regulator open toe quilting foot, Stitch regulator echo quilting foot, Embroidery foot “W”, Compact dual feed and regular dual feed foot, Couching dual feed foot, Embroidery couching foot “Y”, Yarn guide, Yarn threader, Needle set ((2) 75/11 needles, (2) 90/14 needles, (2) 90/14 2 needles, Ball point needle (gold colored)), Twin Needle (2/11 needle), Ball point needle set (2) 75/11 needles, Ball point needle for embroidery (HAX130EBBR), Bobbin × 10 (One bobbin is on machine), Bobbin clip × 10, Seam ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (small), Screwdriver (large), Multi-purpose screwdriver, Spool cap (small), Spool cap (medium) × 2 (One spool cap is on machine), Spool cap (large), Thread spool insert (mini king thread spool), Spool stand, Spool cap (XL) × 2, Spool holder × 2, Spool cap base × 2, Spool felt × 2, Ring × 4, Spool felt (on machine), Spool net × 2, Embroidery needle plate cover, Knee lifter, Alternate bobbin case (no color on the screw), Standard bobbin case (green marking on the screw) (on machine), Straight stitch needle plate, Cord guide bobbin cover, Bobbin cover (with mark) (on straight stitch needle plate), Bobbin cover (on machine), Embroidery frame (medium) H 100 mm × W 100 mm (approx. H 4 inches × W 4 inches), Embroidery frame (large) H 180 mm × W 130 mm (approx. H 7 inches × W 5 inches), Embroidery frame H 272 mm × W 272 mm (approx. H 10-5/8 inches × W 10-5/8 inches), Embroidery frame H 465 mm × W 297 mm (approx. H 18-1/4 inches × W 11-5/8 inches), Scanning frame, Magnet × 6, Embroidery bobbin thread, Embroidery positioning sticker sheets × 2, White calibration stickers (solid), Stabilizer material, Grid sheet set, Dual purpose stylus, Accessory case, Advanced multi-function foot controller (Main foot controller, Side pedal, Mounting plate, Mounting screw × 2), Bobbin center pin and instruction sheet, End point stickers (4 sheets, 243 stickers per sheet), Quick Reference Guide, Product Safety Guide, Support table |
|---|---|
| USB Cable | No |
| Warranty | 2 Year Limited Parts & Labor, 6 Year Electronic Components and Printed Circuit Boards, 25 Year Limited Chassis(Opens in a new tab) |
